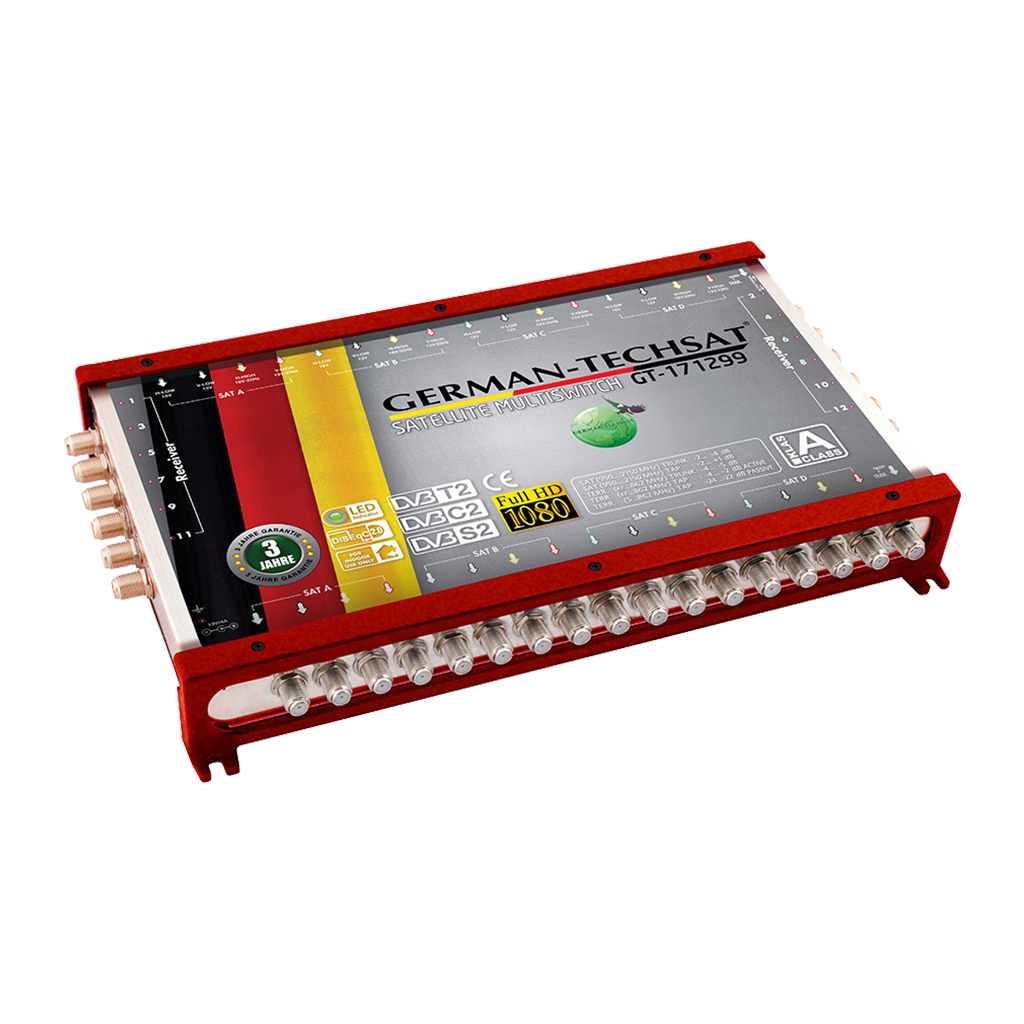

مولتی سوئیچ جرمن تک ۱۲ واحدی با ۳ سال ضمانت
Model
GT-171299
Inputs
SAT polarities + Terr
16+1
Taps
12
Trunk loss
SAT 950..2150 MHz
-1..-5 dB
Terr 5..862 MHz
-4..-5.5 dB
Tap loss
SAT 950..2150 MHz
-6..-1 dB
Active Terr 47..862 MHz
-11..-5 dB
Passive Terr 5..862 MHz
-31..-25 dB
Return loss
SAT 950..2150 MHz
>10 dB
Terr 5..862 MHz
>10 dB
Isolation
SAT to Terr
>60 dB
Terr to SAT
>24 dB
Cross polar, H/V
>30 dB
Output level
SAT (IMD3,EN50083-5)
100 dB
Terr (IMD3,EN50083-5)
96 dB
LNB power supply
13 VDC/4000 mA
Consumption from the receiver
50 mA
Switching commands
DisEq2.0 – ۱۳V/18V , 0/22 KHz, Tone
Dimensions (LxWxH)
310x190x40 mm
